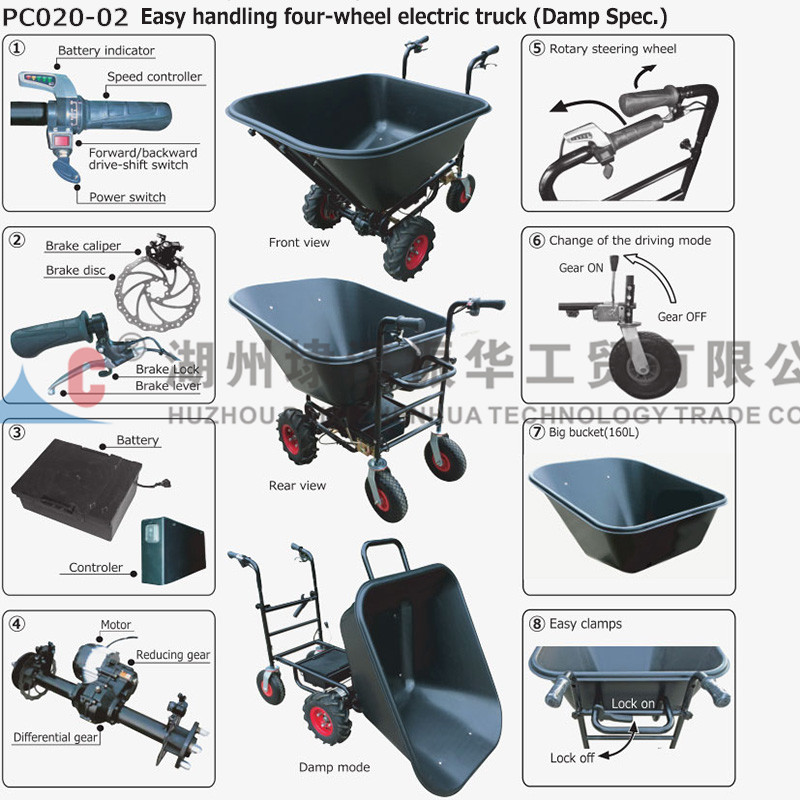

Electric Four Wheels Barrow Specificatons
● Size : 46in(L)x27in(W)x35in～39in(H)
● Weight: 72KG (with battery,pallet)
● Speed : High-speed/Low-speed switchable
〔High speed setting〕3.6mi/h (Forward) ??1.2mi/h (Backward)
〔Low speed setting〕 1.9mi/h (Forward) ??0.8mi/h (Backward)
● Max.Load capacity : 400KG
● Max.Climbing angle : Slope 12°(Max.Load capacity : 400kg)
● Bucket: 160L
● Motor: Wheel motor 350W / RPM:80/min
? ?(Overcurrent protection circuit)
● Brake system : Disc brake / Brake lever with stopper
● Frame : Low carbon steel
● Surface treatment: Powdered baking finish
● Front tire(2) : 13x5.00-6 (Pneumatic tire)
● Rear tire(2): 3.00-4 Caster type (No flat tire)
● Min.Tuming radius : 27in
● Battery : DC24V,24A Electrolyte lead storage battery (Encapsulated type)
● Power switch key (3)
● Grip throttle speed adjustment (0 position automatic retractable)
● Forward/backward drive-shift switch
● Battery indicator
● Rapid charging function : (charging time : 8hours)
● Charger : (input) 100V～240V/50～60Hz (output) DC29V 3.5A
● Operating temperature range : 32°F～104°F
● Qty per 20’/40’M Container(pcs): 105/210
● Made in China
